Imaweld^® TPE Braided Tubing

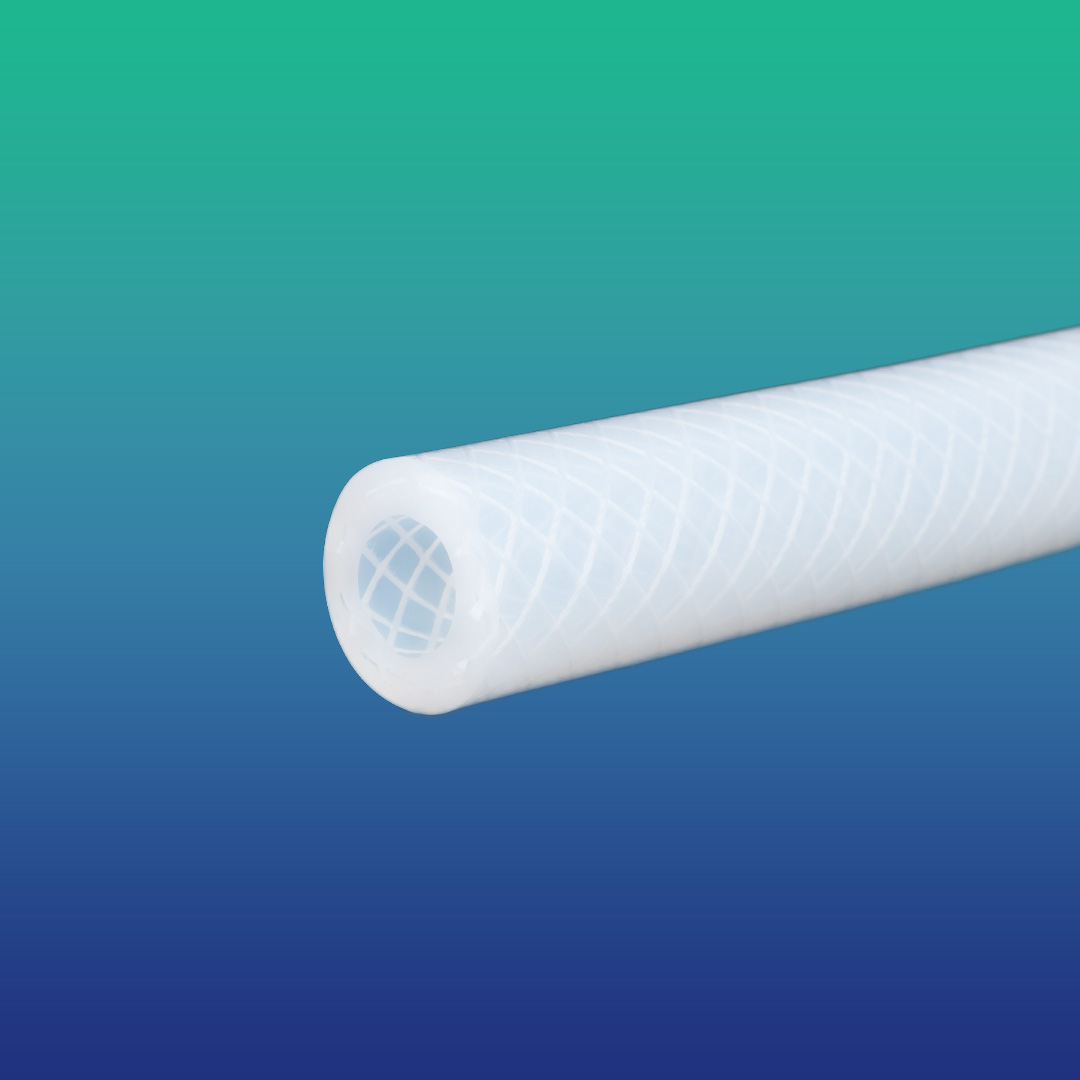

Imaweld^® TPE Braided Tubing is an ultra-flexible, high-purity tubing developed for use in applications where a thermoplastic tube is desired, but the pressure requirements exceed those allowable by a non-reinforced thermoplastic material. Imaweld^® Braided Tubing is manufactured and packed inclean room of ISO Class 7 with our Imaweld^® formulation, Animal derived component free (ADCF) resin and reinforced with polyester braid..

We offer multiple braided tubing options of thermoplastic elastomers. These are offered in a wide range of internal and outer diameters to meet the process requirements.
The manufacturing process is carried out in clean room with cautiously controlled from raw material to finished product manufactured..

ISO 10993-5 (Cytotoxicity, in vitro)
ISO 10993-3 ( Geno toxicity)
ISO 10993-4 (Hemolysis)
ISO 10993-11 (Systemic toxicity, in vivo)
USP Class VI
USP Class 87
FDA 21 CFR 177.2600
Phthalate free
ROHS Compliant
Extractable & Leachable Study

Biopharmaceutical grade
Higher burst pressure compared to non-braided tubing
Ultra flexible, improved bend radius over non- braided tubing.
Autoclavable and gamma sterilizable
Temperature range -40°C to 135°C.
Kink resistant.
Excellent acid and alkali resistance.
BPOG Extractable study report available.
Quick Delivery Support.
Availabel with sanitary Tri-Clover fitting.

#	PART NO.	ID in Inch ( mm)	OD in Inch ( mm)	Working Pressure (in Bar)	Minimum bend radius ( in mm)	Coil length (in meter)
1	06-13-IWB	0.237(6)	0.512(13)	7.58	38	25
2	09-16-IWB	0.354(9)	0.63(16)	5.5	63.5	25
3	12-20-IWB	0.472(12)	0.787(20)	8.96	76	25
4	16-24-IWB	0.629(16)	0.944(24)	7.58	100	15
5	19-29-IWB	0.748(19)	1.106(27)	7.58	140	15
