ImaCondense ^TM

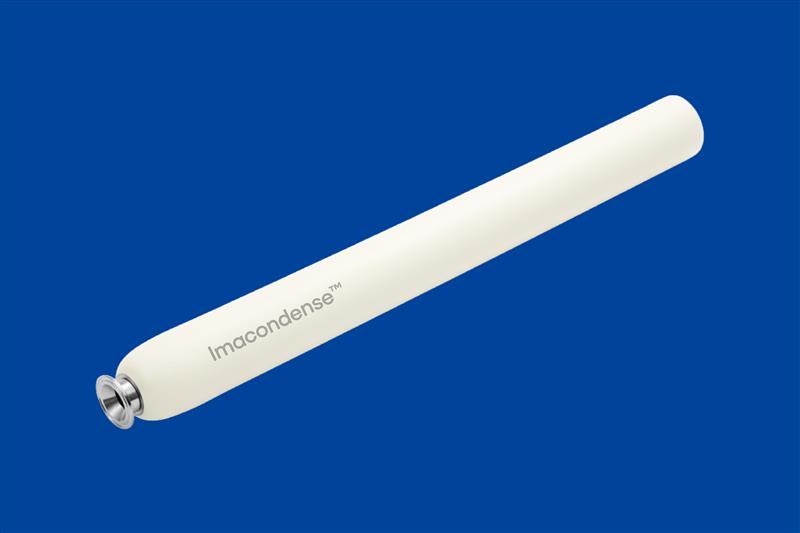

ImaCondense™ is an innovative material developed by Ami polymer, unique in the market with excellent anti-condensation and insulation characteristics. ImaCondense™ forms chemical bonds with the silicone material, which causes perfect adhesion between layers, completely eliminating the risk of detachment.

ImaCondense™ has the best thermal insulation and a low thermal conductivity for improved efficiency. it eliminates condensation problems on cold surfaces.
It is suitable for very cold or frozen liquids and semi liquids in the food, pharmaceutical and biotech industries, Cosmetic industries. It also helps to maintain the product temperatures inside the hose.

E&L studies available on the inner liner
Conforms to the US FDA 21 CFR 177.2600 Food Grade Standard
Conforms to USP Class VI & ISO 10993-1
RoHS, free of phthalate / Bisphenol
Volatile Plasticizer, TSE/BSE Certification
Complete validation package available upon request

Temperature range: -20°C to 230°C
Outer layer: Anti-condensation insulating material
Maximum durability resistant to wear and tear, ensuring long-lasting performance
Easy to install and adaptable

PART NO.	SIZE IN MM (ID × OD)	SIZE IN INCH (ID)	MINIMUM WALL THICKNESS (MM)	MAX WORKING PRESSURE (IN BAR) @ 27°C	MIN BURST PRESSURE (IN BAR) @ 27°C	MIN BEND RADIUS (IN MM)
AC9.0 29.0	9.0 × 29.0	0.35	10	14	42	100
AC12.0 33.0	12.0 × 33.0	0.47	10.5	13.5	41	100
AC16.0 37.0	16.0 × 37.0	0.63	10.5	12.5	38	120
AC19.0 40.0	19.0 × 40.0	0.75	10.5	11.5	34	130
AC25.0 48.0	25.0 × 48.0	1.0	11.5	10.5	32	220
AC32.0 55.0	32.0 × 55.0	1.25	11.5	10	30	250
AC38.0 63.0	38.0 × 63.0	1.5	12.5	10	30	280

- Laser etched hoses for permanent identification on the outer periphery surface of hoses.
- Available with SS 316L Tri-Clover fittings.
- Can be made available in different colors on request.
